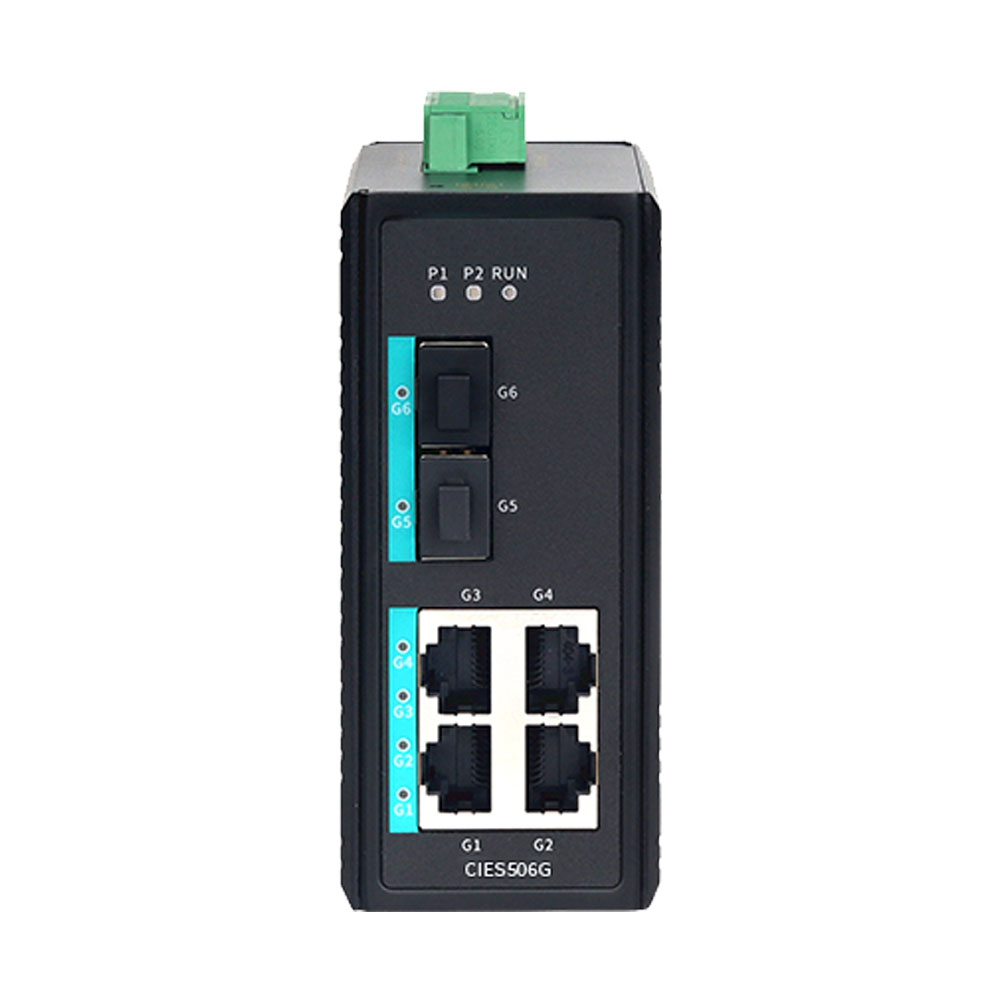

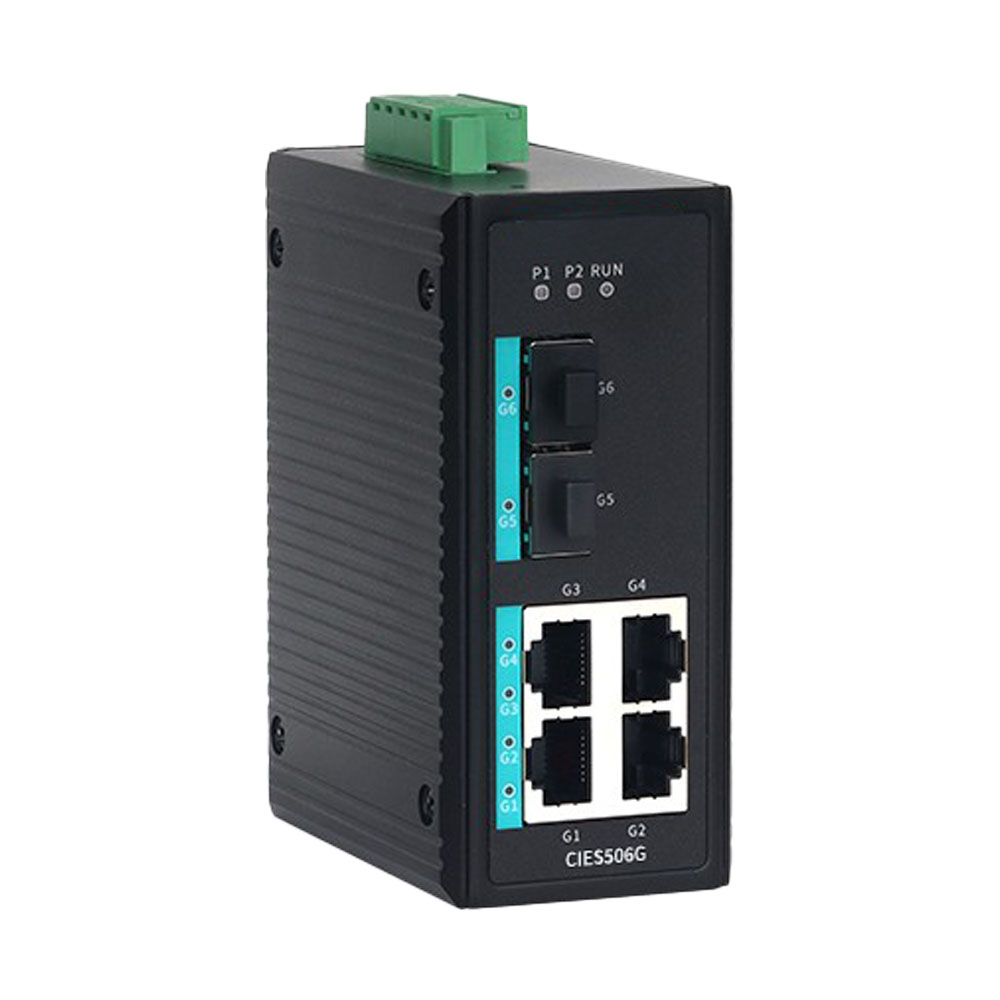

CIES506G-2GF-4GT

CIES506G-2GF-4GT is a 6-port Layer 2 Gigabit managed DIN Rail industrial Ethernet switch. It provides 2 Gigabit SFP ports and 4 1G copper ports, adopts a store-and-forward mechanism, and has powerful bandwidth processing capabilities. Moreover, it can automatically troubleshoot packet errors, reduce transmission failures, and easily support Gigabit networking, thus ensuring stable, reliable, and efficient data transmission. The product selects industrial-grade components and is combined with high-standard system design and production control. It supports 35 mm standard DIN rail installation and features a high-strength aluminum alloy housing that is sturdy and durable. With an operating temperature range of -40℃ to +75℃ and a high-standard industrial protection design, it can withstand various harsh working environments and provide stable communication performance.

CIES506G-2GF-4GT supports WEB network management functions and multiple network protocols, such as MW-Ring, ERPS, STP/RSTP, VLAN, QoS, static aggregation, port mirroring, static multicast MAC address binding, network diagnosis, DDM, system log, and system online upgrade. These functions help improve the performance, reliability, and security of the network, meeting the needs of various complex networks. This product has passed strict functional tests, including high and low temperature, safety, and EMC tests, and meets the application requirements of different network sites and harsh industrial environments. It can be widely used in industrial automation, integrated energy, smart cities, smart transportation, smart factories, and other fields.

• Support port ingress and egress rate limit
• Support broadcast, multicast and unknown unicast message rate limit to prevent network storm
• Support QoS service quality to prioritize the transmission of important data like voice and video
• Support 802.1Q VLAN, provide Access, Trunk, Hybrid interface to easily divide multiple broadcast domains and enhance network security
• Support static multicast MAC address binding to reduce the broadcast of multicast data in the network and save network resources
• Support port mirroring, which can collect port ingress, egress or all data for network detection and fault management
• Support link static aggregation to increase transmission bandwidth and improve link reliability
• Support RSTP spanning tree protocol, compatible with STP protocol, to eliminate network loops and improve network reliability
• Support ERPS Ethernet multi-ring protection technology, provide multi-ring networking, link backup, achieve fast convergence and improve network stability
• Support port statistics, count different types of data frames sent and received, and monitor port traffic
• Support Ping to detect network connectivity
• Support observers and administrators, management of users with different permissions
• Support system logs, can view and export log information of different modules and levels
• Support online device restart, factory reset and system upgrade
