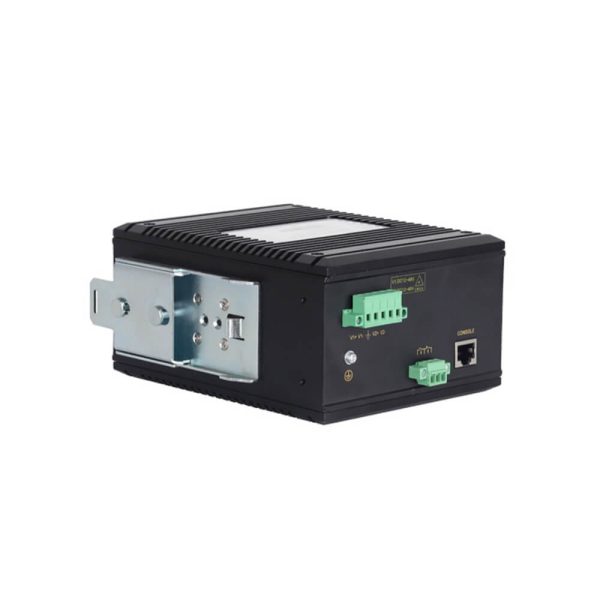

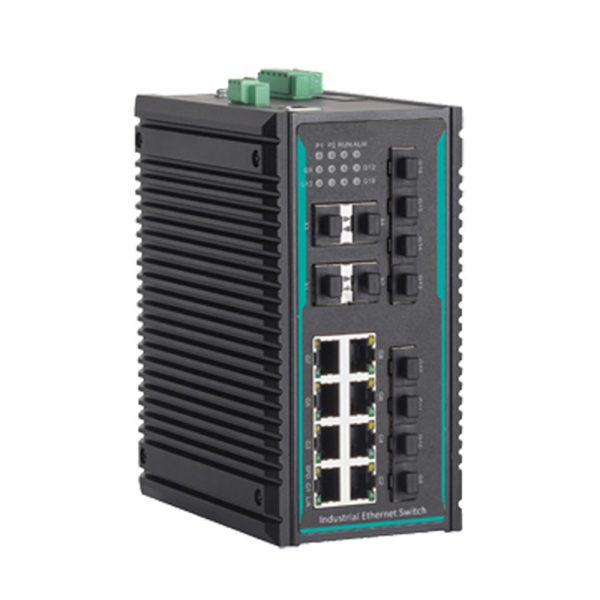

CISCOM8220GX-4XGF-8GF-8GT

CISCOM8220GX-4XGF-8GF-8GT layer 3 10G industrial Ethernet switch supports 4x10G SFP + ports, 8x1G SFP ports, and 8x1G RJ45 ports. It adopts a storage and forwarding mechanism and has strong bandwidth processing capabilities, automatically troubleshooting data packet errors, reducing transmission failures, and easily supporting 10G networking to ensure stable, reliable, and efficient data transmission. The product uses industrial grade components, combined with high standard system design and production control. Standard 19-inch 1U rack type installation, high strength durable aluminum alloy shell, fanless efficient heat dissipation, -40℃ ~ + 75℃ wide working temperature, high standard industrial protection design, can adapt to a variety of harsh working environment, stable communication performance.

CISCOM8220GX-4XGF-8GF-8GT layer 3 switch meets the main communication standards in the industrial field, and meet the technical requirements such as real-time communication, network security and so on. The product provides various ways of managing switches, such as accessing the switch command line (CLI) through the CONSOLE port or TELNET/SSH protocol, the switch WEB interface through HTTP / HTTPS, and the device MIB through the SNMP protocol. It supports multiple network protocols and industry standards, such as RIP, OSPF, VRRP, PIM, EAPS, ERPS, STP/RSTP/MSTP, VLAN, QoS, LACP, IGMP, IGMP Snooping, GMRP, LLDP, 802.1X, ACL, DHCP, SNTP, port mirroring, DDM, Ping, Tracert, etc.

Produktegenskaber

• Support storm suppression of broadcast, multicast and unknown unicast, support broadcast and multicast packet storm detection to prevent broadcast storm
• Support the link static aggregation and dynamic aggregation LACP, which can increase the transmission bandwidth, improve the link reliability and realize the network load sharing
• Support port mirroring, collecting port ingress/egress, and bidirectional data for network detection and fault management
• Understøtter 802.1Q VLAN, giver adgang, trunk, hybrid interface, der er let at opdele flere broadcast-domæner, øger sikkerheden på netværket
• Support VLAN division based on port, MAC, protocol, IP subnetwork, etc., which can be applied to different environments
• Understøtte GVRP-protokol, realisere dynamisk distribution, registrering og udbredelse af VLAN-attributter og vedligeholde dynamisk VLAN
• Support MAC address table and aging time limit, static unicast/multicast MAC address bound with interface to ensure the use of legitimate users
• PIM, IGMP, GMRP, IGMP Snooping og andre multicast-protokoller understøttes for at reducere udsendelsen af multicast-data i netværket og spare netværksressourcer
• Understøtte LLDP-linklagsopdagelsesprotokol, indhent oplysninger om LLDP-naboenheder, udføre overvågning af linkstatus, lette topologistyring og fejlplacering
• Support ERPS Ethernet multi-loop protection technology, provide multi-loop networking, link backup, achieve fast convergence, improve network stability
• Support STP, RSTP, MSTP generation tree protocol, can eliminate network loop, improve network reliability
• Understøtter EAPS-løkkebeskyttelsesprotokol og MW-RingV2 private loop-netværksprotokol, øger pålideligheden af systemkommunikation
• Understøtter loopback-detektion for at forhindre netværket i at ringe og forårsage en netværksstorm
• Support the VRRP virtual routing redundancy protocol, forming multiple routing devices into a virtual router to achieve redundant backup
• Support IPv4 static routing configuration, RIPv1/v2, OSPF dynamic routing protocol, realize routing and forwarding
• Understøtter HTTP, HTTPS, TELNET, SSH netværksadgangstilstand, SSH kan give et sikkert fjernlogin
• Support SNMPv1/v2c/v3, gennem MIB netværksstyringssystem kan være informationsforespørgsel, informationsændring og fejlfinding for at opnå centraliseret styring
• Understøtte QoS-servicekvalitet, prioriter tale, video og vigtige data i netværksenheder, og løs netværksoverbelastning
• Support ACL access control list, filtering TCP/UDP /ICMP/IGMP messages based on source/destination IP and MAC address
• Understøtter 802.1X portgodkendelse, godkendelse og adgangskontrol for adgangsbrugere
• Support dual power redundancy drop relay alarm and upper computer alarm, support port drop upper computer alarm
