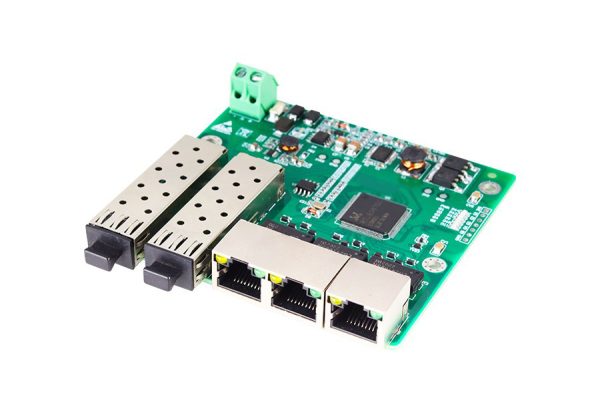

CES3105G-2GF-3GT is a 5-port Layer 2 Gigabit unmanaged embedded industrial Ethernet switch for industrial communication network applications. It meets intrinsically safe design requirements. This product supports 2 Gigabit fiber ports and 3 Gigabit copper ports, and supports DC9~24V input voltage. The power supply supports anti-reverse connection, slow start, over-current and over-voltage protection.Each Gigabit copper port has 10/100/1000M adaptive function, supports full-duplex or half-duplex mode, and can automatically perform MDI/MDI-X connection,making industrial communications more smooth, reliable and faster. The hardware adopts fanless, intrinsically safe, wide-temperature design, with selected industrial-grade components, supporting -40~+85℃ operating temperature. The power supply complies with intrinsically safe circuit design standards, and has passed strict safety and EMC tests to meet the harsh industrial environment application requirements. Products can be widely used in industrial automation, integrated energy, intelligent transportation, smart cities, smart mines and other fields.
| Switch-kapacitet | ||
| Behandlingstype | Store-and-Forward | |
| Backplane båndbredde | 14 Gbps | |
| Buffer størrelse | 2Mbit | |
| MAC bordstørrelse | 2K | |
| Interface | ||
| 1G fiber port | 2*1000Base-X Gigabit fiber ports | |
| 1G kobber port | 3*10/100/1000Base-T(X) adaptive copper ports, supporting full/half duplex, auto MDI/MDI-X connections | |
| Status LED | Strømforsyning status LED
Interface status LED Understøtte ekstern eksport af status LED-signal |
|
| Strømforsyning | ||
| Indgangsspænding | DC9~24V | |
| Strømforbrug | <2,5W@DC12V | |
| Forbindelse | 2-benede klemrækker med 5,08 mm pitch | |
| Fysiske egenskaber | ||
| Dimensioner | 90×85×19.3mm | |
| Installationer | Indlejret installation | |
| Vægt | Omkring 100 g | |
| Arbejdsmiljø | ||
| Driftstemperatur | -40℃~+85℃ | |
| Opbevaringstemperatur | -40℃~+85℃ | |
| Relativ luftfugtighed | 5%~95% (ikke-kondenserende) | |
| Industriel standard | ||
| Certificering | CE, FCC, RoHS | |
| Version | Opdatering | Download |
|---|---|---|
| V1.0 | 2025-02-27 |
PDF-fil
(241,70 KB)
|
| Standard model | 1G fiber port | 1G kobber port | Indgangsspænding |
| CES3105G-2GF-3GT | 2 | 3 | DC9~24V |
