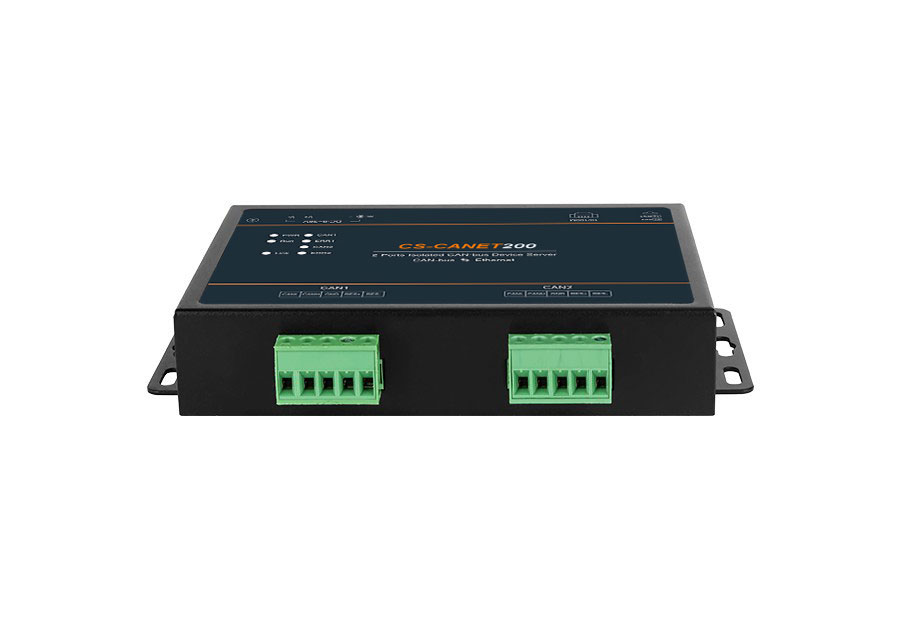

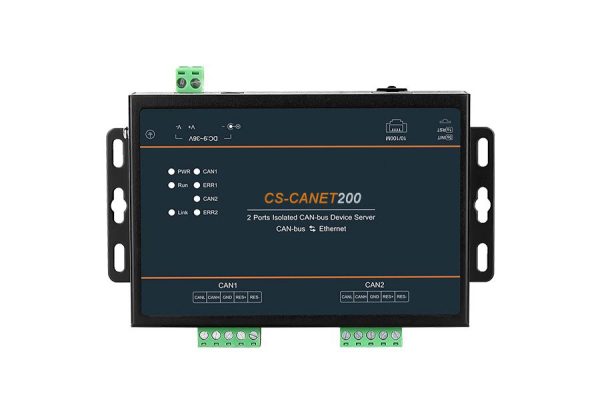

CS-CANET200

2 magistrale CAN-bus do 1x100M Ethernet Serwer ścienny CAN
  • Obsługa 1 portu Ethernet 100M, 2 portów CAN
  • Obsługa sieci urządzeń końcowych CAN i protokołów takich jak CAN do UDP, TCP, Modbus, HTTPD, WebSocket itp.
  • Obsługa przekaźnika CAN w celu uzyskania przejrzystej transmisji danych pomiędzy portami CAN i innymi portami CAN
  • Zewnętrzny, niezależny sprzętowy układ nadzorujący zapobiegający awariom
  • Wejście IndustrialDC9~36V i obsługa zabezpieczenia przed odwrotnym podłączeniem
  • Bardzo wytrzymała metalowa obudowa, ochrona IP40, konstrukcja bez wentylatora
  • -40°C do +85°C temperatura pracy

CS-CANET200 is a wall mount CAN server with 2 isolated CAN to Ethernet conversion. It features a 32-bit Arm Cortex-M7 core with a high clock frequency of up to 400MHz and an external hardware watchdog design. It provides high-level ESD, Surge, and EFT protection for power supply, network ports, and CAN ports, offering strong interference resistance. This product is specifically designed for industrial users to enable bidirectional transparent transmission between CAN-bus and Ethernet, expanding the scope of CAN-bus networks.

CS-CANET200 supports 2*CAN interfaces and 1 Gigabit Ethernet port, with isolation between each CAN interface at 2kVAC. Users can freely set the communication baud rate for each CAN from 5Kbps to 1000kbps, enabling interconnection of CAN networks with different communication baud rates. It integrates a TCP/IP protocol stack internally, allowing bidirectional transparent transmission between the 2*CAN and Ethernet. It also supports CAN relay functions for network expansion, increasing the number of nodes and extending communication distances. It can be cascaded infinitely, enabling long-distance communication.

The product offers powerful ID filtering capabilities, allowing users to select allowed or prohibited ID ranges for selective data forwarding. This significantly reduces the bus load on the channels, improves data isolation, and enhances data utilization efficiency.

Industrial-grade CAN server supports various web-based management functions, including CAN/network operating modes, port information, network addresses, user passwords, system information, and system management. It also supports multiple conversion modes such as UDP/UDP Multicast, TCP Client/Server, Modbus TCP Slave, Relay, Pair Connection Master/Slave, HTTPD Client, WebSocket Client, enabling CAN to Ethernet or Modbus TCP protocol conversion.

In terms of core components, the product is designed with an industrial-grade quality scheme, offering advantages such as wide temperature and voltage ranges, lightning protection, electromagnetic interference resistance, high reliability, high performance, and suitability for operation in harsh environments. It can be used in various industries, including fire alarms, industrial monitoring, traffic management, meteorology, water treatment, environmental monitoring, coal mining, petroleum, chemical engineering, new energy, and more. It is used for remote field data collection, remote monitoring, on-site control, making it an essential industrial communication product for the development of the Industrial Internet of Things (IIoT).

Cechy produktu

  • Wykorzystuje 32-bitowy rdzeń ARM Cortex-M7 o wysokiej częstotliwości roboczej do 400 MHz
  • Porty CAN obsługują wybieralne szybkości transmisji w zakresie od 5 kbps do 1000 kbps
  • Obsługa standardu CAN Frame ID i rozszerzonego filtrowania Frame ID
  • Support UDP and UDP Multicast modes, enabling point-to-point, point-to-multipoint, or multipoint-to-multipoint communication via UDP protocol for fast and efficient data transfer
  • Support TCP Client/Server mode, establishing session connections through TCP protocol, supporting up to 4 concurrent session connections
  • Support Pair Connection Master/Slave mode, allowing devices to be used in pairs with straightforward operation
  • Support Modbus TCP Slave mode, enabling the conversion between Modbus TCP and CAN bus protocols through read and write command mapping
  • Support Relay Mode, allowing data forwarding between CAN ports
  • Support HTTPD Client mode, enabling GET or POST operations with an HTTPD server
  • Obsługa trybu klienta WebSocket, umożliwiająca dwukierunkową komunikację z serwerami WebSocket
  • Support various packetization mechanisms, converting CAN data into Ethernet data packets based on data length or time, meeting different network real-time requirements
  • Support registration packets and heartbeat packets for connection validation and connection status detection
  • Provide statistics on the number of sent and received frames on bus ports and network connection information
  • Support user management with different access permissions
  • Enable online restart of CAN ports, device restart, factory settings restoration, and firmware upgrades
Oprogramowanie
Protokół sieciowy Protokół IP, protokół TCP/UDP, protokół ARP, protokół ICMP, protokół DHCP, protokół DNS, protokół HTTP
Metoda uzyskiwania IP Statyczny adres IP/DHCP
Konfiguracja użytkownika Konfiguracja sieci Web
Prosta, przejrzysta transmisja TCP Client/TCP Server/UDP /UDP Multicast/Pair Connection/WebSocket Client/HTTPD Client
Modbus CAN to Modbus TCP
Network connection count A single bus port supports up to 4 network connections.
Pamięć podręczna sieciowa Send:16Kbyte; Receive:16Kbyte
Transmission Delay(Average) <10ms
Pakiet Heartbeat Support (Client Only)
Pakiet rejestracyjny Support (Client Only)
Packet Length CAN:0~50 frames
Packet Interval 0~255ms
Przekaźnik CAN Wsparcie
CAN Transmisja/Odbiór Wysyłanie: 6000 klatek na sekundę; Odbieranie: 8000 klatek na sekundę
Filtrowanie identyfikatorów CAN Wsparcie
Bufor CAN Wyślij: 200 kompletnych pakietów danych na kanał; Odbierz: 200 kompletnych pakietów danych na kanał
Interfejs
Port miedziany 100M 1*10/100Base-T(X) port auto sensing RJ45 port, full/half duplex, auto MDI/MDI-X
MÓC Ports: 2*CAN

Metoda połączenia: Bloki zaciskowe z odstępem 5,08 mm

Szybkość transmisji: 5 kbps do 1000 kbps

Rezystancja końcowa: Wbudowana rezystancja końcowa 120Ω, można podłączyć za pomocą listew zaciskowych

Ochrona izolacyjna: 2kVAC

Przycisk Przycisk ponownego uruchomienia lub przywrócenia ustawień fabrycznych za pomocą jednego przycisku
Dioda LED stanu Wskaźnik zasilania, wskaźnik działania, wskaźnik portu Ethernet, wskaźnik CAN, wskaźnik ERR
Zasilacz
Napięcie wejściowe Prąd stały 9~36 V
Pobór mocy <0,8 W przy DC12 V (pełne obciążenie)
Połączenie 2-stykowe zaciski o rozstawie 5,08 mm lub okrągła głowica DC Φ2,5 mm
Charakterystyka fizyczna
Wymiary 162×95×29 (mm) (mounting brackets included)
Instalacje Uchwyt ścienny
Kod IP IP40
Środowisko pracy
Temperatura pracy -40℃~+85℃
Temperatura przechowywania -40℃~+85℃
Wilgotność względna 5%~95% (bez kondensacji)
Standard branżowy
Kompatybilność elektromagnetyczna IEC 61000-4-2 (ESD – Wyładowania elektrostatyczne):

l Contact Discharge: ±8kV

l Air Discharge: ±15kV

IEC 61000-4-5 (Udar):

l Power Supply: Common Mode ±4kV, Differential Mode ±2kV

l CAN: Common Mode ±4kV, Differential Mode ±2kV

l Ethernet Port: Common Mode ±6kV, Differential Mode ±2kV

IEC 61000-4-4 (EFT – szybkie przejściowe stany elektryczne):

l Power Supply: ±4kV

l Communication Port: ±4kV

Orzecznictwo CE, FCC, RoHS

CS-CANET200 Datasheet

Wersja Aktualizacja Pobierać
Wersja 1.0 2025-03-03
PDF
(240,58 KB)
Model standardowy Port miedziany 100M MÓC Napięcie wejściowe
CS-CANET200 1 2 Prąd stały 9~36 V
