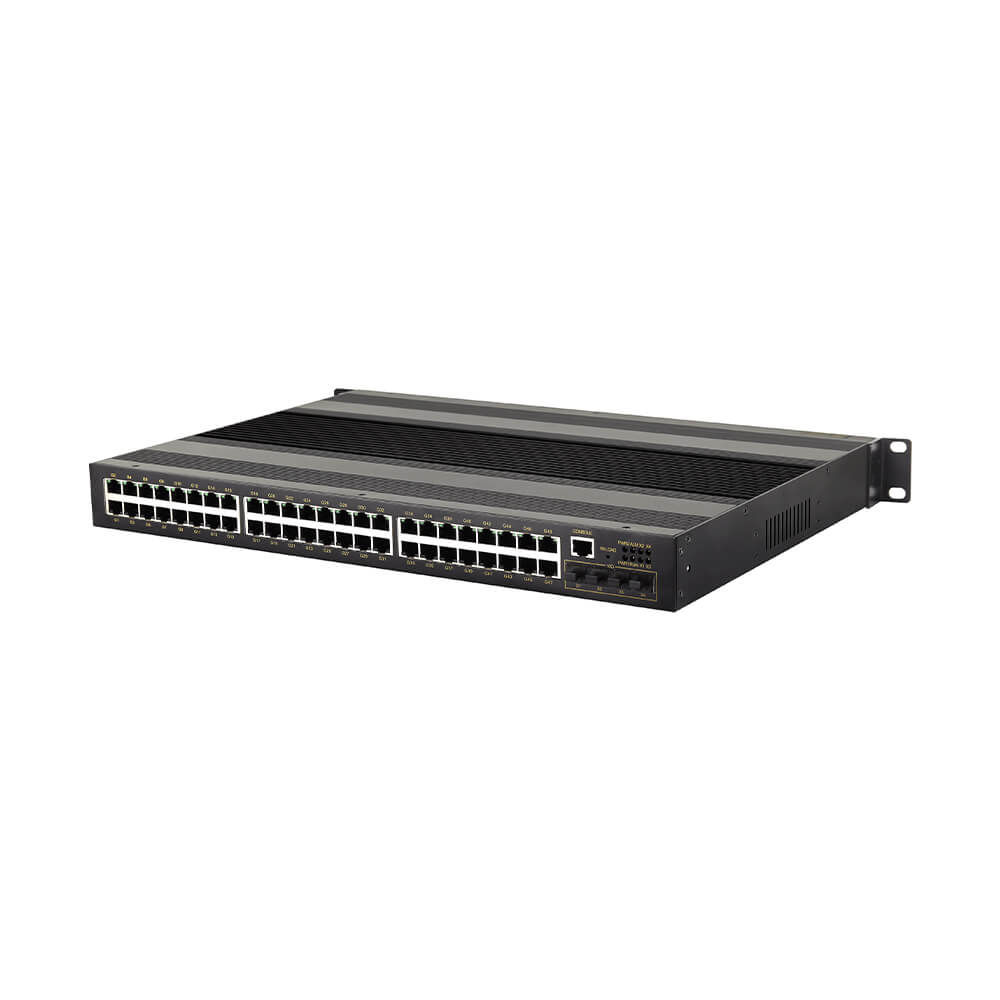

CISCOM8052GX-4XGF-48GT

52-portowy przełącznik Ethernet przemysłowy warstwy 3 10G do montażu w szafie
  • Obsługa 4 portów SFP+ 10 Gigabit i 48 portów miedzianych Gigabit
  • Obsługa szybkiej sieci pierścieniowej (MW-Ring), ERPSv1/v2, STP/RSTP/MSTP i innych protokołów redundancji sieci pierścieniowej
  • Obsługa protokołów statycznego routingu IPv4/IPv6, dynamicznego routingu RIPv1/v2 i OSPF do routingu i przekazywania
  • Obsługuje modele z pojedynczym lub podwójnym wejściem zasilania o szerokim zakresie napięć: AC85~264 V dla wejścia AC i DC110~370 V dla wejścia DC.
  • Obudowa ze stopu aluminium o wysokiej wytrzymałości z bezwentylatorowym odprowadzaniem ciepła, temperatura pracy od -40°C do +75°C

CISCOM8052GX-4XGF-48GT is a layer 3 10 Gigabit industrial Ethernet switch. It supports 4×10 Gigabit SFP+ ports and 48 Gigabit copper ports, utilizing a store-and-forward mechanism. It has powerful bandwidth processing capabilities, can automatically detect packet errors, reducing transmission failures, easily supporting Gigabit networks, and ensuring stable, reliable, and efficient data transmission.

The product is built with industrial-grade components and features a high-strength aluminum alloy casing. It is rugged and durable, with fanless efficient heat dissipation, capable of operating in a wide temperature range from -40°C to +75°C. It adheres to high industrial protection standards and can withstand various harsh working environments while maintaining stable communication performance.

CISCOM8052GX-4XGF-48GT layer 3 switch complies with key communication standards in the industrial field, addressing issues such as communication real-time performance and network security. It offers multiple management options, including access to the switch’s command-line interface (CLI) through the CONSOLE port or TELNET/SSH protocols, access to the web interface through HTTP/HTTPS, and device MIB access through SNMP protocol. It also supports various network protocols, such as RIP, OSPF, VRRP, ERPS, MW-Ring, STP/RSTP/MSTP, VLAN, QoS, LACP, PIM, IGMP, IGMP Snooping, LLDP, 802.1X, ACL, RMON, DHCPv4 client/server/relay/listening, NTP, port mirroring, DDM, Ping, Traceroute, etc. It supports configuration file uploads and downloads, online upgrade, and backup of image files, among other system management features.

Produkt Cechy

  • Support static link aggregation and dynamic aggregation (LACP), which can increase transmission bandwidth, improve link reliability, and achieve network load balancing
  • Obsługa sieci VLAN 802.1Q, zapewniająca interfejsy dostępowe, magistralne i hybrydowe w celu łatwego podziału wielu domen rozgłoszeniowych, zwiększając bezpieczeństwo sieci
  • Support VLAN segmentation based on MAC, protocol, IP subnet, etc., suitable for networks in different environments
  • Support PIM, IGMP, IGMP Snooping, and multicast filtering to reduce multicast data broadcast in the network, saving network resources
  • Support LLDP (Link Layer Discovery Protocol) to obtain LLDP neighbor device information, monitor link status, and facilitate topology management and fault localization
  • Support ERPS (Ethernet Ring Protection Switching) v1/v2 for Ethernet ring protection technology, providing ring network configuration, link backup, rapid convergence, and improved network stability
  • Support VRRP (Virtual Router Redundancy Protocol) to create a virtual router with multiple router devices for redundancy and backup
  • Support SNMPv1/v2c/v3, allowing information queries, modifications, and troubleshooting through the MIB (Management Information Base) network management system, enabling centralized management
  • Support RMON (Remote Monitoring) for remote network monitoring, statistics, and alarms on various types of data frames, useful for remote monitoring and management in network management systems
  • Support port security by converting dynamic MAC addresses into secure dynamic/static/sticky MAC addresses, enhancing device security
  • Support 802.1X port authentication for user authentication and access control of connecting users
  • SupportAAA (Authentication, Authorization, and Accounting) security network management mechanism through RADIUS and TACACS+ for preventing unauthorized user logins
  • Obsługa ACL (listy kontroli dostępu) umożliwiającej dostosowywanie różnych reguł filtrowania typów ramek, co pozwala na filtrowanie lub ograniczanie szybkości przesyłania określonych pakietów
  • Obsługa QoS (Quality of Service) w celu nadania priorytetu transmisji głosu, obrazu i ważnych danych w urządzeniach sieciowych, co pozwala na rozwiązywanie problemów z przeciążeniem sieci
  • Obsługa serwera DHCPv4 w celu scentralizowanego, dynamicznego zarządzania i konfiguracji adresów IP użytkowników
  • Support DDM (Digital Diagnostic Monitoring) for monitoring parameters such as temperature, voltage, current, transmit and receive optical power of DDM SFP optical modules



Oprogramowanie
Przełączanie Obsługa konfiguracji portu, ograniczanie szybkości portu, tłumienie burz, wykrywanie burz, agregacja portów, protokół LACP (Link Aggregation Control Protocol) i statystyki portu

Support 802.1Q VLAN, VLANs based on MAC/protocol/IP subnet, PVLAN (Private VLAN), and VLAN translation

Support MAC address aging and learning restrictions, as well as static MAC address binding

Nadmierność Support Fast Ring Network (MW-Ring) private protocol

Support ERPSv1/v2 (Ethernet Ring Protection Switching)

Support STP (Spanning Tree Protocol)/RSTP (Rapid Spanning Tree Protocol)/MSTP (Multiple Spanning Tree Protocol)

Multicast Wsparcie IGMP Snooping

Obsługa filtrowania multicast

Support IGMPv2/v3 (Internet Group Management Protocol versions 2/3)

Support PIM-SM (Protocol Independent Multicast – Sparse Mode)

Rozgromienie Obsługa statycznego routingu IPv4/IPv6

Support routing control, routing encryption, and routing access control lists (ACLs)

Support dynamic routing protocols such as RIPv1/v2 (Routing Information Protocol version 1/2) and OSPF (Open Shortest Path First)

Support VRRPv2/v3 (Virtual Router Redundancy Protocol version 2/3)

Zarządzanie bezpieczeństwem Support HTTP/HTTPS, SNMP, TELNET/SSH for access management

Support ACL (Access Control List), 802.1X port authentication, AAA (Authentication, Authorization, and Accounting) authentication, and port security

Support source IPv4/IPv6 protection and ARP protection

Support loopback detection and relay alarms

Zarządzanie i konserwacja Support QoS (Quality of Service), SNMPv1/v2c/v3, SNMPv1/v2c/v3 Trap, RMON (Remote Monitoring), and LLDP (Link Layer Discovery Protocol)

Obsługa klienta DHCPv6, klienta/serwera/nasłuchiwania/przekaźnika DHCPv4

Support port mirroring, DDM (Digital Diagnostic Monitoring), Ping IPv4/IPv6, Traceroute IPv4/IPv6

Support user permission management, logging, NTP client

Support configuration file management, image upgrades with dual backup, online reboot, and factory reset

Możliwość przełączania
Typ przetwarzania Przechowuj i przesyłaj dalej
Szerokość pasma płyty montażowej 180 Gb/s
Rozmiar bufora 32Mbit
Rozmiar tabeli MAC 32 tys.
Interfejs
Port światłowodowy 10G 4*10GBase-R 10G SFP+ modules
Port miedziany 1G 48*10/100/1000Base-T(X) auto-sensing Gigabit RJ45 port, supporting full/half duplex and auto MDI/MDI-X
Przekaźnik 1 Relay Alarm Output, with 3-pin 5.08mm pitch locking terminal connectors
KONSOLA 1 Console Port, RJ45 with RS232 Signal, used for device debugging and command-line configuration
Przycisk One-Button Reboot or Factory Reset
Dioda LED stanu Power Indicator, Operation Indicator, Alarm Indicator, Interface Indicator
Zasilacz
Napięcie wejściowe Prąd zmienny 85~264 V/prąd stały 110~370 V
Pobór mocy <63W@AC220V(full load)
Połączenie Złącze zaciskowe 5-stykowe o rozstawie 5,08 mm
Charakterystyka fizyczna
Wymiary 482.6*44*315 mm (mounting brackets included)
Instalacje Montaż w szafie 19 cali 1U
Waga 5.6kg
Środowisko pracy
Temperatura pracy -40℃~+75℃
Temperatura przechowywania -40℃~+85℃
Wilgotność względna 5%~95% (bez kondensacji)
Standard branżowy
Kompatybilność elektromagnetyczna IEC 61000-4-2 (ESD): Level 4: Contact discharge ±8kV, Air discharge ±15kV

IEC 61000-4-5 (Surge): Level 4: Power ports: Common mode ±4kV, Differential mode ±2kV

IEC 61000-4-4 (EFT): Level 4: Power supply: ±4kV; Network ports: ±2kV

Orzecznictwo CE, FCC, RoHS

Karta katalogowa CISCOM8052GX-4XGF-48GT

Wersja Aktualizacja Pobierać
Wersja 1.0 2025-02-28
PDF
(400,08 KB)
Model standardowy 10G

Port światłowodowy

1G

Port miedziany

Napięcie wejściowe
CISCOM8052GX-4XGF-48GT 4 48 Prąd zmienny 85~264 V/prąd stały 110~370 V
