CIAP325-3A25-2D

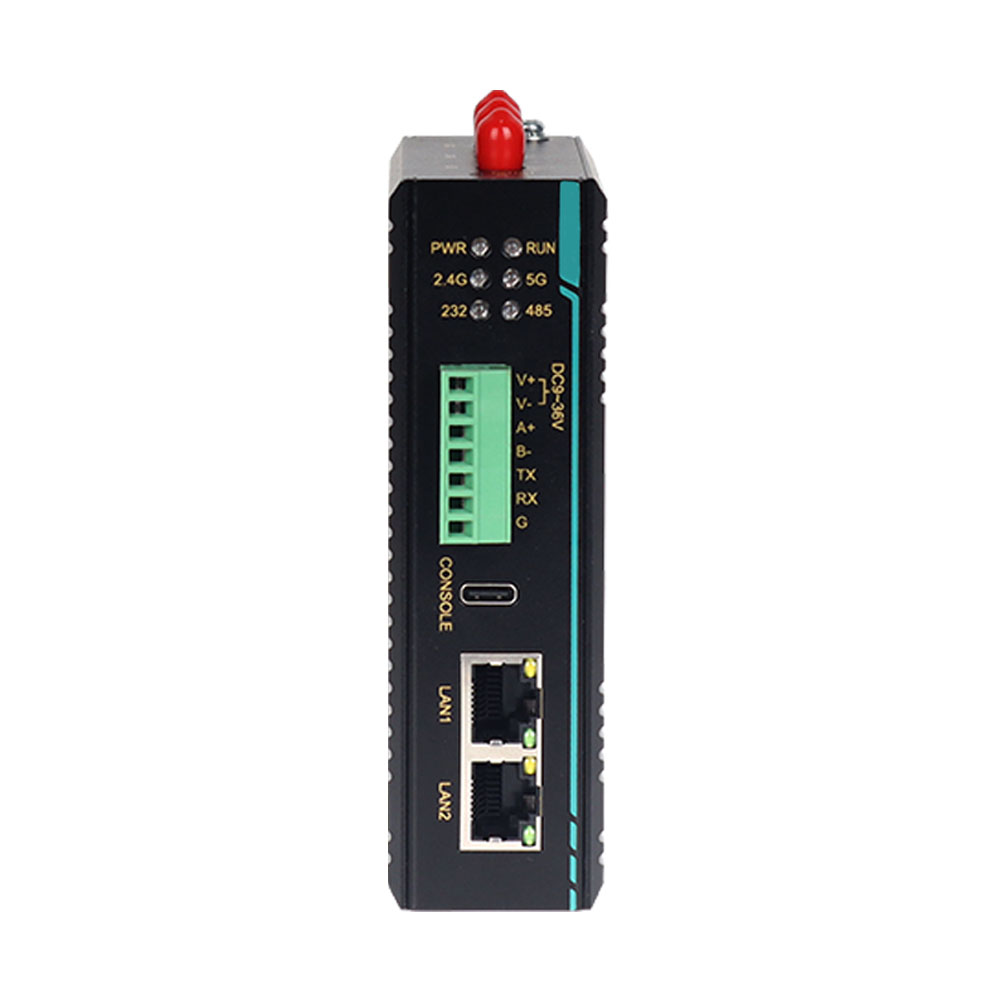

2-portowy 100M Dual-band Wi-Fi 5 z 2 portami danych, montowany na szynie przemysłowy klient bezprzewodowy
  • 2 porty LAN 100M, 1 port szeregowy RS232 i 1 port szeregowy RS485
  • Interfejsy antenowe 2×2,4 GHz i 1×5 GHz
  • Obsługa dostępu do terminali bezprzewodowych, ukrywanie SSID, izolacja użytkowników, mostkowanie WDS itp.
  • Obudowa ze stopu aluminium o wysokiej wytrzymałości, stopień ochrony IP40
  • Przeznaczony do pracy w temperaturach od -40°C do +75°C

CIAP325-3A25-2D is a DIN-rail mounted dual-band Wi-Fi 5 industrial wireless client designed to connect wired and serial devices to wireless networks in harsh industrial environments. With support for both 2.4GHz and 5GHz frequency bands, the device ensures stable, high-speed wireless communication for field applications such as automation, energy systems, and intelligent infrastructure.

This model features:

  • 2×100M LAN ports, 1×RS232, and 1×RS485 serial ports
  • 2×2.4GHz and 1×5GHz antenna interfaces
  • DC9–36V wide voltage input and standard DIN-rail mounting
  • Industrial-grade aluminum housing, built for -40°C to +75°C operation

CIAP325-3A25-2D supports a full suite of network management features via WEB UI, including client/WDS/NAT modes, IPv6, enhanced roaming, DHCP, firewall, serial-to-network, user-level management, and remote/local logs. It also enables firmware upgrades, configuration backup/restore, and scheduled reboot.

Built with industrial-grade components, it meets rigorous safety, EMC, and temperature standards, making it ideal for use in industrial automation, smart cities, intelligent transportation, smart mines, and factory networks.

Cechy produktu

  • Support client mode, which can convert a wireless network into a wired network and enable a wired terminal to access a wireless network.
  • Wireless NAT supports DHCP protocol, static address, and other methods to connect to the external network;
  • Support IP address conflict detection, quickly locate IP conflict source, and avoid network failure;
  • Support DHCP server, centrally manage and configure user IP addresses dynamically;
  • Support a wireless access point, which can convert a wired network into a wireless network and enable wireless terminals to access the wired network;
  • Support WEP-OPEN/SHARE-AUTH, WPA/WPA2-PSK encryption methods, CCMP, TKIP encryption algorithms;
  • Support IPv4/IPv6 Ping, IPv4/IPv6 Traceroute, Nslookup, and packet capture can be used for network diagnosis or fault analysis.
  • The firewall supports port mapping, iptables command custom rules, NAT conversion, and other functions;
  • Support NTP client and server functions, and can synchronize clocks or provide clock sources.
  • Support hierarchical management of user permissions, and supports SSH, HTTP/HTTPS access control.
  • Log information records kernel, application, and network information at various levels, and supports local download, timed storage, and remote monitoring.
  • Wireless NAT supports DHCP protocol, static address, and other methods to connect to the external network.
  • Support serial port to network, and provides UDP Client/ Server/ Multicast, TCP Client/Server, Modbus RTU Master/Slave, Modbus ASCII Master/Slave, Realcom MCP/CCP/MW, Pair Connection Master/Slave, Httpd Client, WebSocket Client, MQTT Client, OPC UA Server, IEC104 Server, HJ212 Client and other network modes, realizing serial port to TCP, UDP, HTTPD, WebSocket, MQTT, Modbus RTU/ASCII to Modbus TCP, OPC UA, IEC104, HJ212, etc.;
  • Support JSON function, which can convert the collected Modbus slave device data into JSON format and send it to the server.

Funkcje oprogramowania

NMS Function

Status information such as traffic statistics, running status, network status, and local address is supported

IPv6 services and IP address conflict detection are supported

Support client mode, WDS/universal/wireless NAT connection mode

Support client enhanced roaming function and wireless parameters

DHCP servers are supported

Support serial port to network

Zapora sieciowa

WAN/LAN port TCP/UDP port mapping is supported

NAT network address translation is supported

Custom rules for iptables are supported

System Administration

Wsparcie IPv4/IPv6 Ping、IPv4/IPv6 Traceroute、Nslookup、Capture network packets

Supports time zone, NTP client/server, Crontab, remote/local logging

Supports user rights management, SSH, HTTP/HTTPS access control, and certificate upload

It supports online reboot, scheduled restart, configuration backup/restore, flashing firmware, and factory reset

Wi-F radio frequency parameters

Standardy bezprzewodowe

IEEE 802.11a/b/g/n/ac

Operating Frequency Band

2.412GHz~2.484GHz, 5.18GHz~5.825GHz

Szerokość pasma kanału

20MHz/40MHz/80MHz

Maksymalna moc nadawania

IEEE 802.11ac:22±2dBm @HT80 MCS9 /5GHz band

IEEE 802.11ac:22±2dBm @HT80 MCS0 /5GHz band

IEEE 802.11n:24dBm @HT20/40 MCS7

IEEE 802.11g:25dBm @54MHz

IEEE 802.11b:28dBm @11MHz

Odbierz czułość

VHT80 MCS9:-58dBm@10%PER(MCS9) /5GHz band

HT40 MCS7: -69dBm@10% PER(MCS7)

HT20 MCS7: -71dBm@10% PER(MCS7)

54M:-74dBm@10% FOR

11M:-90dBm@ 8% FOR

Maksymalna prędkość transmisji (theoretical).

The maximum transmission rate of 2T2R in the 2.412GHz~2.484GHz frequency band is 300Mbps

The maximum transmission rate of 1T1R in the 5.18GHz~5.825GHz frequency band is 433Mbps

The theoretical maximum wireless bandwidth is 733Mbps

Distance Covered

2.4GHz coverage radius up to 400m (outdoor air/no interference environment, 5dBi omnidirectional antenna)

5GHz coverage radius up to 700m (outdoor air/interference-free environment, 5dBi omnidirectional antenna)

Specyfikacje interfejsu

100 mln Sieć lokalna

2 x 10/100Base-T(X) auto-sensing RJ45 LAN ports, supporting full/half-duplex and auto MDI/MDI-X

Serial

Serial port type: 1*RS232 and 1*RS485 serial port

Connection: 7-position 3.81mm pitch terminal, serial port occupies 5 positions

Baud rate:600bps~460800bps

Data bit: 7bit, 8bit

Stop bit: 1bit, 2bit

Check digit: None, Odd, Even

Number of nodes: RS-485 can connect up to 128 nodes

Termination Resistor: RS485 has a built-in 120Ω termination resistor, which can be switched by internal jumper caps

Interfejs antenowy

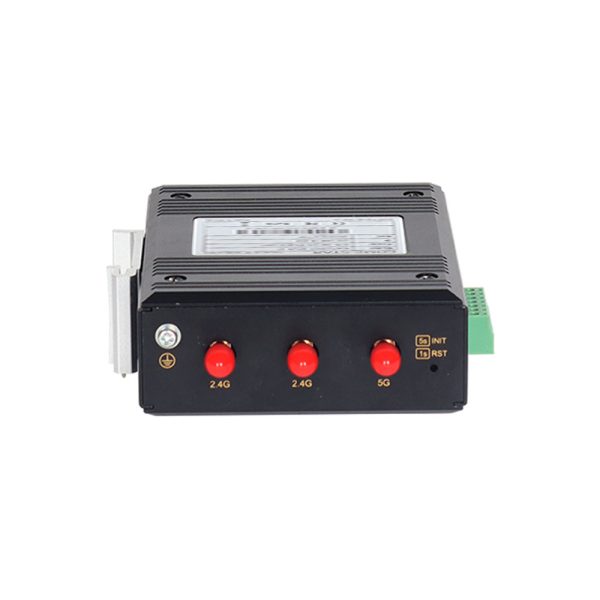

3*SMA-K (Male Threaded Internal Hole) antenna connectors, including 2*2.4GHz Wi-Fi antennas and 1*5GHz Wi-Fi antennas

KONSOLA

1*CONSOLE port, using USB Type-C interface

Keystroke

Reboot or factory reset button

Light

Power indicator, running indicator, 2.4G indicator, 5G indicator, RS232 indicator, RS485 indicator, Ethernet interface indicator

Parametry zasilania

Moc wejściowa

Prąd stały 9~36 V

Power Consumption at full load

5.5W@DC24V

Połączenie

7-position 3.81mm pitch terminal block, power supply occupies 2 positions

Ochrona zasilania

Połączenie anty-odwrotne

Mechanical Parameters

Wymiary

118×35×88 mm

Instalacja

Montaż na standardowej szynie DIN 35 mm

Kod IP

Aluminum alloy shell, IP40 protection level

Waga

Approx. 0.35kg (without antenna).

Working environment

Temperatura pracy

-40℃~+75℃

Temperatura przechowywania

-40℃~+85℃

Wilgotność względna

5%~95% (bez kondensacji)

Normy branżowe

Kompatybilność elektromagnetyczna

IEC 61000-4-2 (ESD): Poziom 4 (wyładowanie kontaktowe ±8 kV, wyładowanie powietrzne ±15 kV)

IEC 61000-4-5(Surge):Level 3 (Power supply: Common mode ±2kV, differential mode ±1kV; Network port: Common mode ±6kV, differential mode ±2kV; RS485: Common mode ±4kV, differential mode ±2kV)

IEC 61000-4-4(EFT): Level 4 (Power supply: ±4kV; Ethernet port: ±2kV)

Model

100 mln Sieć lokalna

RS232

RS485

Antena 2,4 GHz

5GHz antenna

Power range

CIAP325-3A25-2D

2

1

1

2

1

DC9V~36V

ciaap314 1a2 2d

CIAP314-1A2-2D

Konwerter RS232/485 na WiFi i Ethernet

ciap315r 1a25 232

CIAP315R-1A25-232

Konwerter szeregowy na dwupasmowy Wi-Fi

ciap314r 1a2 485

CIAP314R-1A2-232

Przemysłowy klient bezprzewodowy Wi-Fi 4, IEEE 802.11 b/g/n 2.4G

ciap326 2a25 2d

CIAP326-2A25-2D

Serwer urządzeń Wi-Fi Dual Band

ciap325 2a25 2d

CIAP325-2A25-2D

Serwer urządzeń Wi-Fi Dual Band

CIAP315R-1A25-485

Konwerter szeregowy na dwupasmowy Wi-Fi
