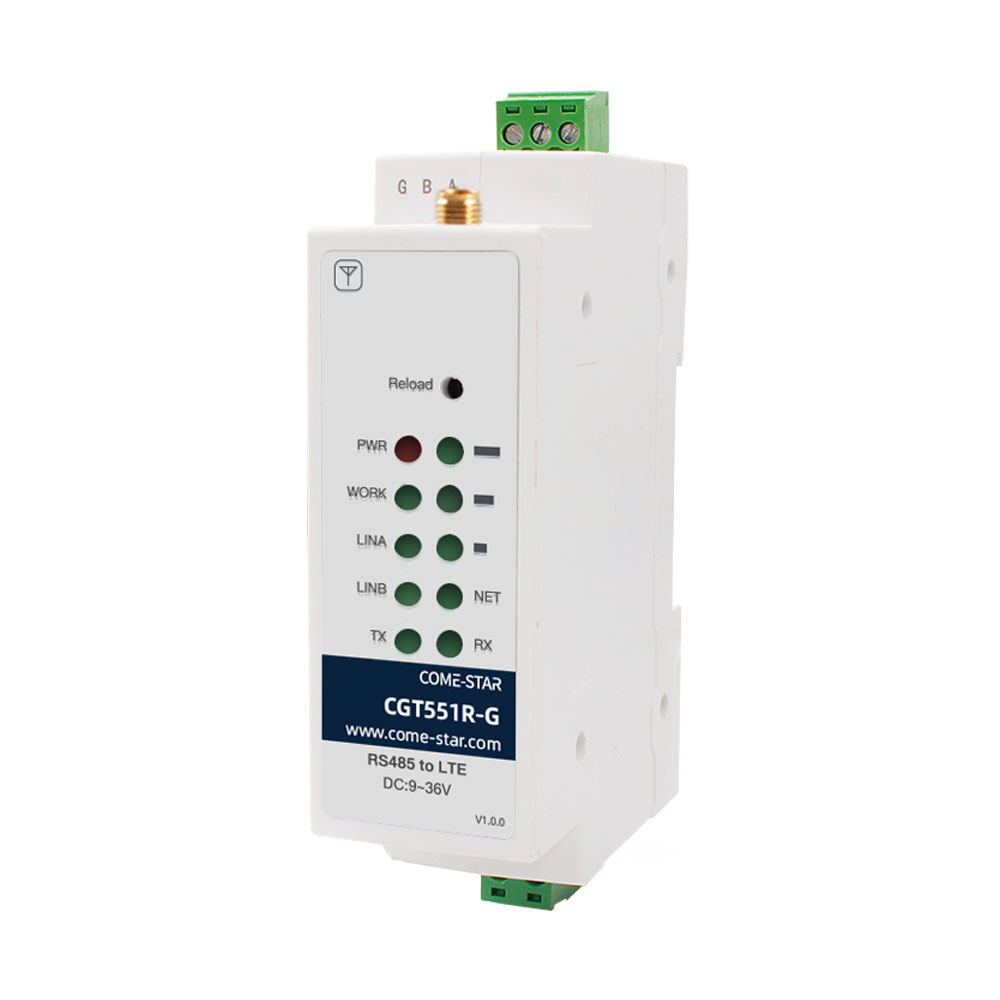

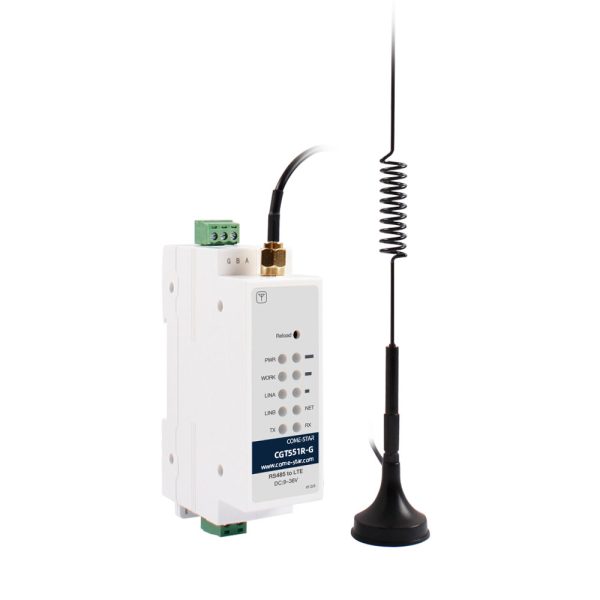

CGT551R-G is a DIN-Rail LTE Cat 4 Modem, with low latency, high reliability and high real-time characteristics. The product has a fast transmission rate, with an uplink peak rate of 50Mbps and a downlink peak rate of 150Mbps.CGT551R-G supports the frequency bands of major operators all over the world, CGT551R-EUX in European, and CGT551R-AUX in Australia and Latin America.
The product supports TCP/UDP transparent transmission, SMS transparent transmission, HTTP transparent transmission, and mutual conversion between modbus TCP and RTU. The product has rich functions, simple to use, and supports customization. It can realize functions such as MQTT to meet more functional needs of customers.
Produkt Cechy
| CGT551R Series Specifications | ||||
| Pasma częstotliwości | Global (CGT551R-G) | LTE-FDD: B1/B2/B3/B4/B5/B7/B8/ B12/B13/B18/B19/B20/B25/B26/B28
LTE-TDD: B38/B39/B40/B41 UMTS: B1/B2/B4/B5/B6/B8/B19 GSM: B2/B3/B5/B8 |
||
| Europe/Middle East/Africa/Korea /Thailand/India
(CGT551R-EUX) |
LTE-FDD: B1/B3/B7/B8/B20/B28A
LTE-TDD: B38/B40/B41 WCDMA: B1/B8 GSM: B3/B8 |
|||
| Australia/New Zealand/Taiwan/
La tin America (CGT551R-AUX) |
LTE FDD: B1/B2/B3/B4/B5/B7/B8/B28
LTE TDD: B40 WCDMA: B1/B2/B4/B5/B8 GSM: B2/B3/B5/B8 |
|||
| RX Sensitivity: | ||||
| CGT551R-G | CGT551R-EUX | CGT551R-AUX | ||
| LTE B1: -99.5dBm (10MHz)
LTE B2: -99.9dBm (10MHz) LTE B3: -99.7dBm (10MHz) LTE B4: -99.7dBm (10MHz) LTE B5: -99.9dBm (10MHz) LTE B7: -99.2dBm (10MHz) LTE B8: -99.8dBm (10MHz) LTE B12: -99.8dBm (10MHz) LTE B13: -99.5dBm (10MHz) LTE B18: -100dBm (10MHz) LTE B19: -99.9dBm (10MHz) LTE B20: -99.8dBm (10MHz) LTE B25: -100dBm (10MHz) LTE B26: -99.5dBm (10MHz) LTE B28: -99.6dBm (10MHz) LTE B38: -99dBm (10MHz) LTE B39: -99.5dBm (10MHz) LTE B40: -99.2dBm (10MHz) LTE B41: -99dBm (10MHz) WCDMA B1: -109.2dBm WCDMA B2: -110dBm WCDMA B4: -109.7dBm WCDMA B5: -110.4dBm WCDMA B6: -110.5dBm WCDMA B8: -110.5dBm WCDMA B19: -110.1dBm GSM850: -108dBm EGSM900: -108dBm DCS1800: -107.5dBm PCS1900: -107.5dBm |
LTE B1: -101.5dBm (10M)
LTE B2: -101dBm (10M) LTE B3: -101.5dBm (10M) LTE B4: -101dBm (10M) LTE B5: -101dBm (10M) LTE B7: -99.5dBm (10M) LTE B8: -101dBm (10M) LTE B12: -101dBm (10M) LTE B13: -100dBm (10M) LTE B14: -99dBm (10M) LTE B18: -101.7dBm (10M) LTE B19: -101.4dBm (10M) LTE B20: -102.5dB (10M) LTE B26: -101.5dBm (10M) LTE B28: -102dBm (10M) LTE B38: -100dBm (10M) LTE B40: -100dBm (10M) LTE B41: -99dBm (10M) LTE B66: -99dBm (10M) LTE B71: -100dBm (10M) WCDMA B1: -110dBm WCDMA B2: -110dBm WCDMA B4: -110dBm WCDMA B5: -110.5dBm WCDMA B6 -110.5dBm WCDMA B8: -110.5dBm WCDMA B19: -110.5dBm GSM850: -109dBm EGSM900: -109dBm DCS1800: -109dBm PCS1900: -109dBm |
LTE B1: -101.5dBm (10M)
LTE B2: -101dBm (10M) LTE B3: -101.5dBm (10M) LTE B4: -101dBm (10M) LTE B5: -101dBm (10M) LTE B7: -99.5dBm (10M) LTE B8: -101dBm (10M) LTE B12: -101dBm (10M) LTE B13: -100dBm (10M) LTE B14: -99dBm (10M) LTE B18: -101.7dBm (10M) LTE B19: -101.4dBm (10M) LTE B20: -102.5dB (10M) LTE B26: -101.5dBm (10M) LTE B28: -102dBm (10M) LTE B38: -100dBm (10M) LTE B40: -100dBm (10M) LTE B41: -99dBm (10M) LTE B66: -99dBm (10M) LTE B71: -100dBm (10M) WCDMA B1: -110dBm WCDMA B2: -110dBm WCDMA B4: -110dBm WCDMA B5: -110.5dBm WCDMA B6 -110.5dBm WCDMA B8: -110.5dBm WCDMA B19: -110.5dBm GSM850: -109dBm EGSM900: -109dBm DCS1800: -109dBm PCS1900: -109dBm |
||
| Sprzęt komputerowy | ||||
| Sprzęt komputerowy | Moc | 9~36V | ||
| Power supply protection | ESD: IEC 61000-4-2 Level 3
Skok napięcia: IEC 61000-4-5 Poziom 3 EFT: IEC 61000-4-5 Poziom 3 |
|||
| Reverse polarity Protection RS485 protection | 485 protection: | |||
| Wymiary | 28mm x64.7mm x109.7mm | |||
| Working current | 67mA～102mA 12V | |||
| Operating temperature | Temperatura pracy | |||
| Temperatura przechowywania | -40℃~+90℃ | |||
| Wilgotność względna | 5%~95% (bez kondensacji) | |||
| Physical Interfaces
|
UART | RS485 (3PIN) | ||
| USIM | 3.0V/1.8V, Micro SIM 3FF | |||
| RF | SMA | |||
| Wskaźniki | PWR,WORK,NET,LINK,Tx,Rx,RSSI | |||
| Przeładować | Przycisk | |||
| Interfejs szeregowy | RS232 | Standardowe złącze DB9 | ||
| Szybkość transmisji (bps) | 2400~230400bps | |||
| Bity danych | 8 | |||
| Bity stopu | 1, 2 | |||
| Parytet | Brak, nieparzyste, parzyste | |||
| Certyfikat | Certyfikaty CE, CCC, ROHS | |||
| Oprogramowanie | ||||
| Oprogramowanie | TCP/UDP/HTTP/DNS/FTP/OTA/NTP/FTP/MQTT SMS:MO/MT Text and PDU modes
TCP/UDP/HTTPD/SMS transparent transmission Base station geolocation |
|||
| Wersja | Aktualizacja | Pobierać |
|---|---|---|
| Wersja 1.0 | 2025-05-30 |
PDF
(255,35 KB)
|
| Model | CGT551R-G |
| Region | Światowy |
| Model | CGT551R-EUX |
| Region | Europe/Middle East/Africa/Korea /Thailand/India |
| Model | CGT551R-AUX |
| Region | Australia/New Zealand/Taiwan/Latin America |
