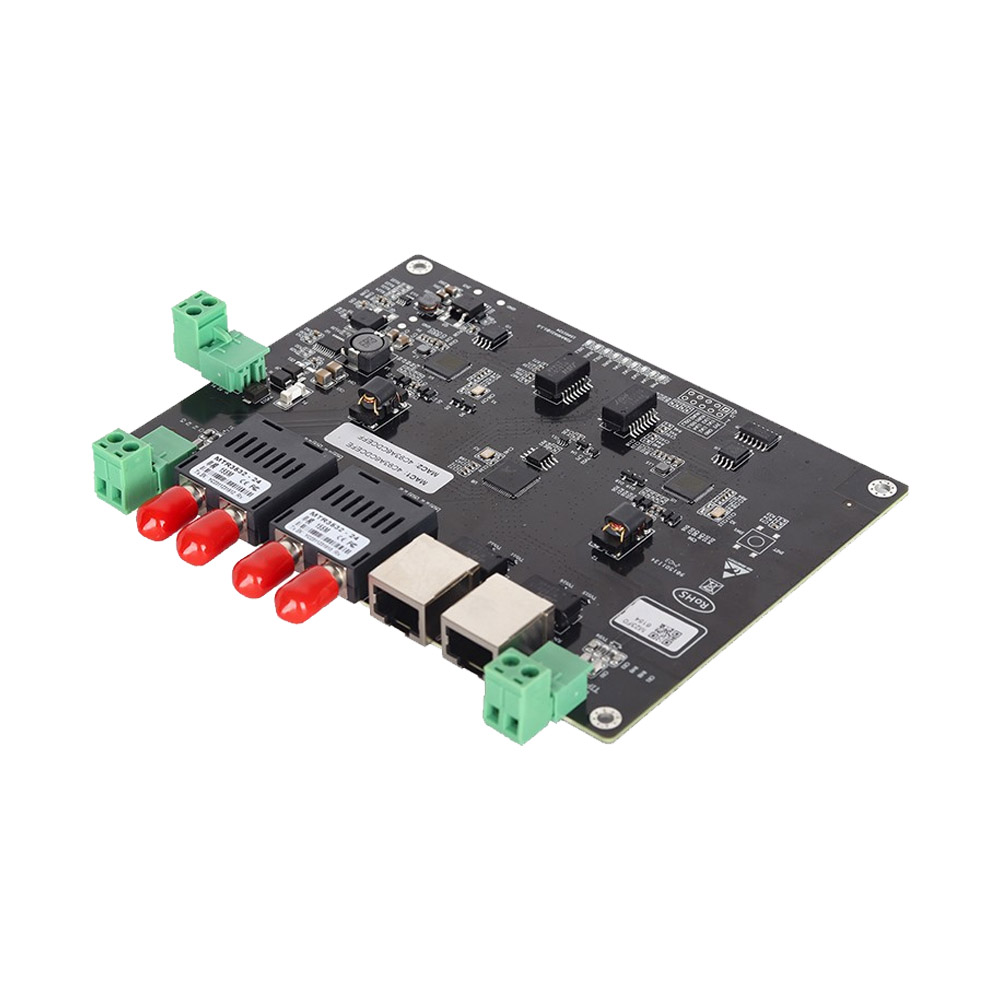

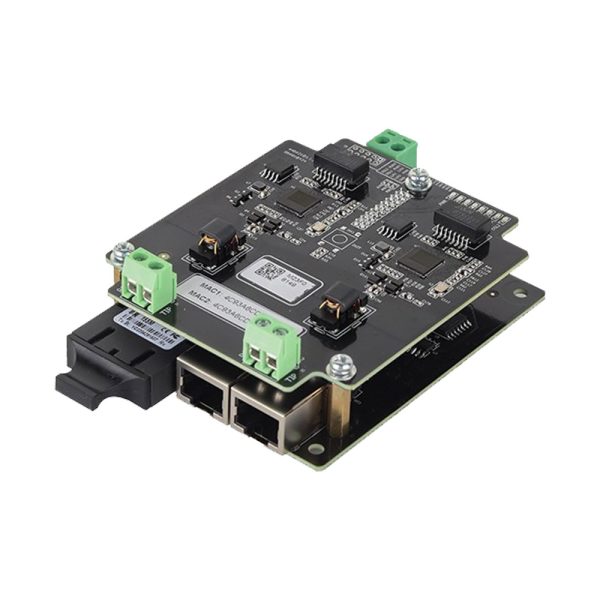

CES1204A series is a dual DSL embedded intrinsically safe Ethernet extender designed and developed specifically for industrial communication network. It supports 4*100M Ethernet ports, 2*DSL ports and DC12~32V power input. The extender meets intrinsic safety design requirements. This product can be connected in pairs through DSL ports, and transmit Ethernet signals over long distances through a pair of twisted pair telephone lines. The transmission distance can reach 1.1km, which breaks free from the 100-meter limit of copper ethernet cable. The DSL ports comply with IEEE1901 and HomePlug-AV (HPAV) standards. The 100M Ethernet ports support 4*copper ports, or 2 fiber and 2 copper ports optional. Each 100M port has auto-sensing 10/100M function, supports full-duplex or half-duplex mode, and support auto MDI/MDI-X. Tested to meet the application requirements of harsh industrial environments, it can be widely used in industrial automation, integrated energy, smart cities, rail transit, intelligent transportation, smart factories and other fields.
| Keupayaan Suis | |
| Lebar Jalur Belakang | 1.6Gbps |
| Saiz Penampan | 768kbit |
| Saiz Jadual MAC | 2K |
| Antara muka | |
| Pelabuhan DSL | 2*DSL ports, using 2-position 5.08mm spacing terminal blocks, communication distance 1.1km (10Mbps)
(Cable requirements: 2-core twisted pair telephone line with wire diameter 0.5mm2 or above, twisting distance less than 25mm |
| Pelabuhan Fiber 100M | 2*100Base-FX fiber port (SC/FC/ST, single-mode/multi-mode, wavelengths and transmission distances are optional) |
| Pelabuhan Tembaga 100M | 2/4*10/100Base-T(X) auto-sensing RJ45 ports, support full-duplex/half-duplex and auto MDI/MDI-X connection |
| LED status | Power indicator light, DSL operation indicator light, DSL interface indicator light, Ethernet interface indicator light, support external routing of indicator light signals |
| Bekalan Kuasa | |
| Voltan Masukan | DC12~32V |
| Penggunaan Kuasa | ＜2.5W@DC12V (MES1204A), ＜4.3W@DC12V (MES1204A-2F) |
| Sambungan | 2-pin with 5.08mm spacing terminal blocks |
| Perlindungan Kuasa | Overcurrent protection, overvoltage protection, reverse connection protection, pre-charge |
| Ciri-ciri Fizikal | |
| Dimensi | 150×110×13.6 mm |
| Pemasangan | Terbenam |
| Berat badan | 107g (MES1204A), 122g (MES1204A-2F) |
| Persekitaran Kerja | |
| Suhu Operasi | -20℃~+75℃ |
| Suhu Penyimpanan | -40℃~+85℃ |
| Kelembapan Relatif | 5%~95% (tidak pemeluwapan) |
| Piawaian Industri | |
| EMC | IEC 61000-4-5 (Surge): Level 2 (Power supply, ethernet port, DSL port: common mode ±1kV, differential mode ±0.5kV)
IEC 61000-4-4 (EFT): Level 3 (Power supply, ethernet port, DSL port: ±2kV) |
| Pensijilan | CE, FCC, RoHS |
| Versi | Kemas kini | Muat turun |
|---|---|---|
| V1.0 | 2025-03-03 |
PDF
(274.60 KB)
|
| Model Standard | 100J
Pelabuhan Fiber |
10/100J
Pelabuhan Tembaga |
DSL Interface | Voltan Masukan |
| CES1204A | / | 4 | 2 | DC12~32V |
| CES1204A-2F | 2 | 2 | 2 | DC12~32V |
