CISCOM8032GX-8XGF-24GT

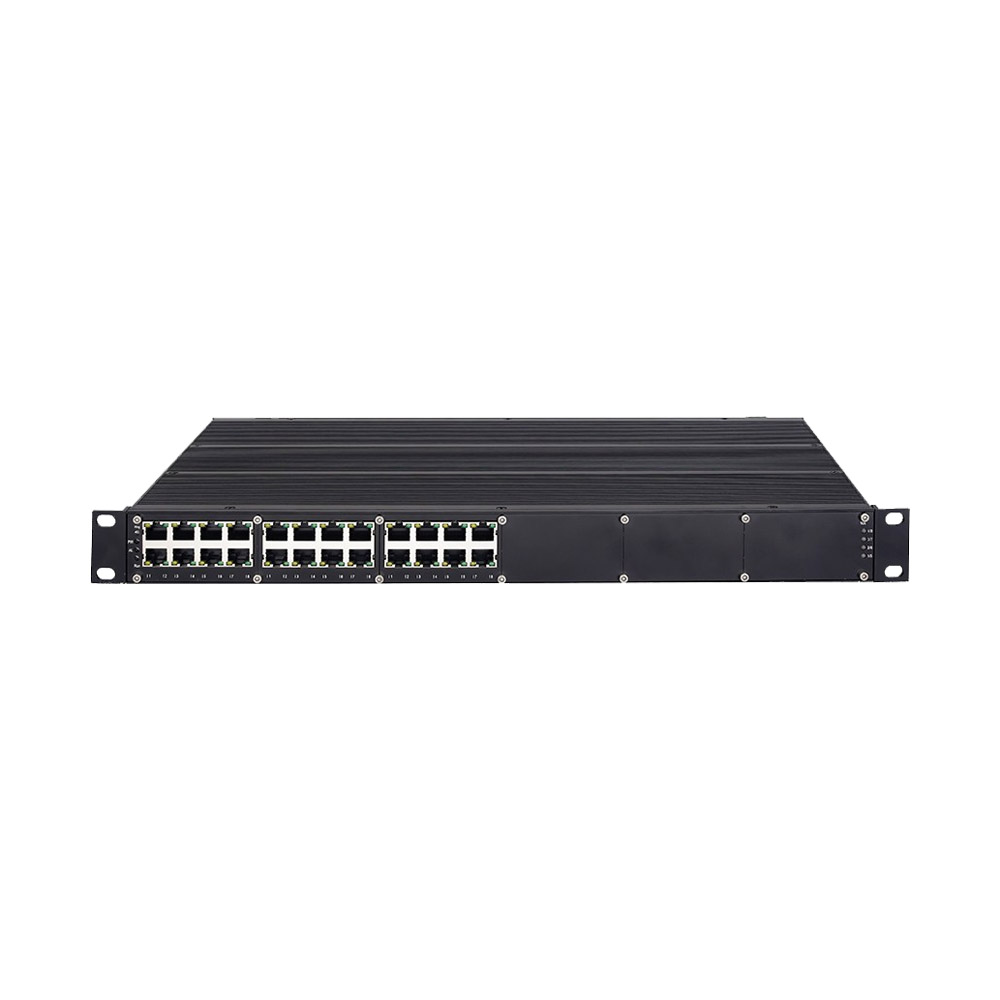

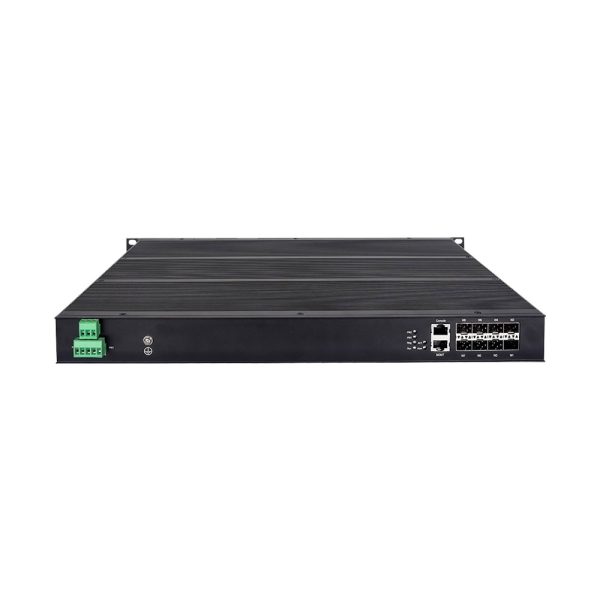

CISCOM8032GX-8XGF-24GT series is domestically produced layer 3 core 10G rack-mounted industrial Ethernet switch. It uses CTC7132 domestic chips, supports 440Gbps bandwidth, integrates ARM dual-core A53 processors, supports multiple media such as QSGMII and USXGMII, and supports full-rate port capabilities from 100M to 100G. The product supports 8x10G SFP+ ports and 24 Gigabit copper ports, adopts a store-and-forward mechanism, has powerful bandwidth processing capabilities, automatically checks data packet errors, reduces transmission failures, and easily supports 10G networking, ensuring stable, reliable, and efficient data transmission. The product selects industrial-grade components, cooperates with high-standard system design and production control, standard 19-inch 1U rack installation, high-strength metal casing, sturdy and durable, fanless and efficient heat dissipation, -40℃~+75℃ wide temperature operation, high-standard industrial protection design, can adapt to various harsh working environments, and stable communication performance.

CISCOM8032GX-8XGF-24GT series Layer 3 switches comply with the main communication standards in the industrial field, meeting technical issues such as real-time communication and network security. The product provides multiple ways to manage the switch, such as accessing the switch command line (CLI) through the CONSOLE port or TELNET/SSH protocol, accessing the switch WEB interface through HTTP/HTTPS, and accessing the device MIB through the SNMP protocol. At the same time, it provides a variety of network protocols and industry standards, such as RIP, OSPF, IS-IS, BGP, VRRP, ERPS, STP/RSTP/MSTP, VLAN, GVRP, QinQ, QoS, LACP, PIM, IGMP, IGMP Snooping, GMRP, LLDP, 802.1X, ACL, RMON, DHCPv4 client/server/snooping/relay, DHCPv6 server/relay, SNTP, NTP, port mirroring, Ping, Traceroute, Syslog, alarm and online upgrade, etc., which can improve the performance, reliability and security of the network and meet the needs of various complex networks. The products have passed strict functional, high and low temperature, safety and EMC tests to meet the application requirements of complex networks and harsh industrial environments. They can be widely used in integrated energy, smart cities, rail transit, intelligent transportation, smart factories, industrial automation and other fields.

製品の特徴

• Support broadcast, multicast and unknown unicast storm suppression to prevent network storms
• リンク静的集約と動的集約LACPをサポートし、伝送帯域幅を増やし、リンクの信頼性を向上させ、ネットワーク負荷分散を実現します。
• Support 802.1Q VLAN, provide Access, Trunk, Hybrid interfaces to easily divide multiple broadcast domains and enhance network security
• Support VLAN division based on MAC, protocol, IP subnet, etc., which can be applied to networks in different environments
• Support PIM, IGMP, IGMP Snooping and static multicast to reduce the broadcast of multicast data in the network and save network resources
• LLDPリンク層検出プロトコルをサポートし、LLDP隣接デバイス情報を取得し、リンク状態を監視し、トポロジ管理と障害箇所を容易にします。
• Support ERPS Ethernet multi-ring protection technology, provide multi-ring networking, perform link backup, achieve fast convergence, and improve network stability
• Support VRRP virtual routing redundancy protocol, combine multiple routing devices into a virtual router to achieve redundant backup
• HTTP、HTTPS、TELNET、SSH、CONSOLEポートおよびその他のログイン方法をサポート
• Support SNMPv1/v2c/v3, and query, modify and troubleshoot information through MIB network management system to achieve centralized management
• RMONリモートネットワーク監視、統計、およびさまざまな種類のデータフレームのアラームをサポートし、ネットワーク管理システムのリモート監視と管理に使用できます。
• アクセスユーザーの802.1Xポート認証、ID認証、アクセス制御をサポート
• Support ACL access control list, and customize multiple frame type filtering rules to filter or rate limit specified messages
• QoSサービス品質をサポートし、音声、ビデオ、重要なデータがネットワークデバイスで最初に送信され、ネットワークの混雑を解決します。
• ポートミラーリングをサポートし、ネットワーク検出と障害管理のためにポートで送受信されるデータを収集できます。
• Ping IPv4/IPv6およびTraceroute IPv4/IPv6をサポートし、ネットワーク接続を検出して障害点を特定します。
• Support DHCPv4/DHCPv6 server, and centrally manage and configure user IP addresses dynamically
• Support DHCPv4/DHCPv6 relay to assist DHCP server in dynamically allocating network parameters to DHCP client
• Support Syslog server remote monitoring
