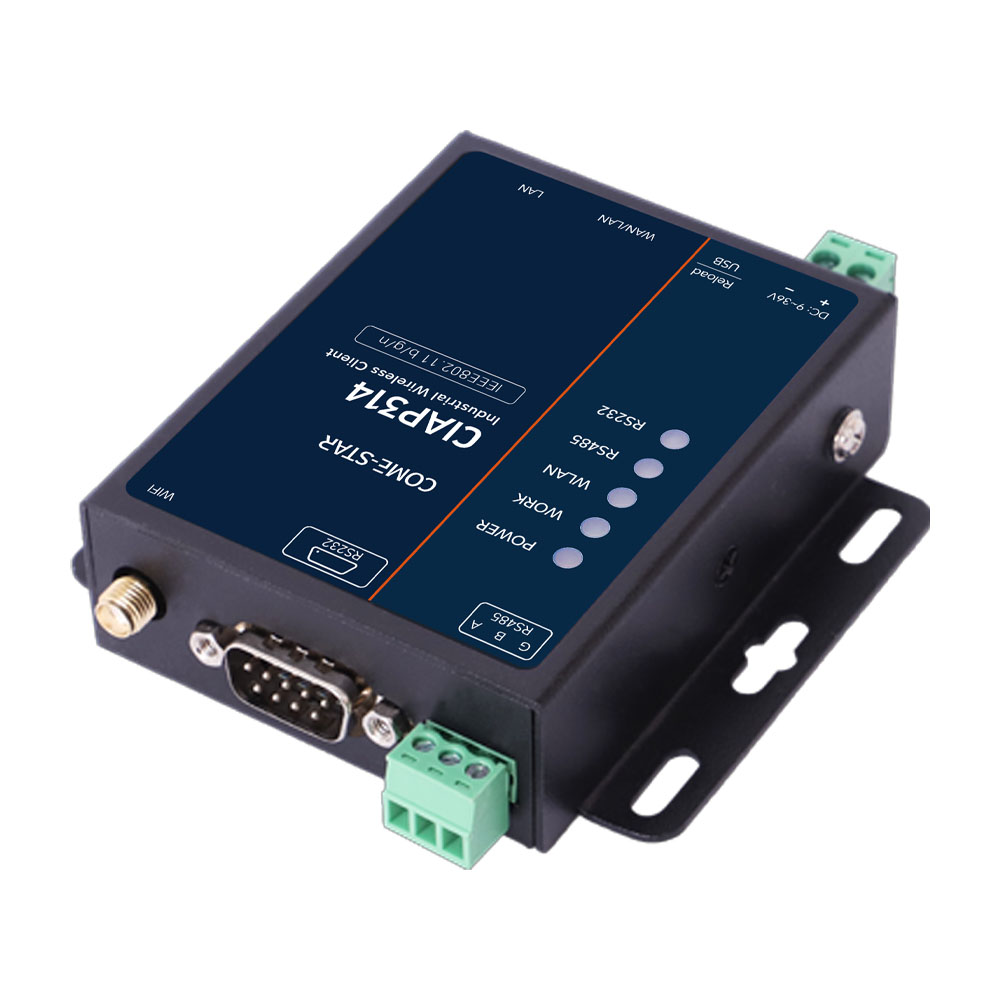

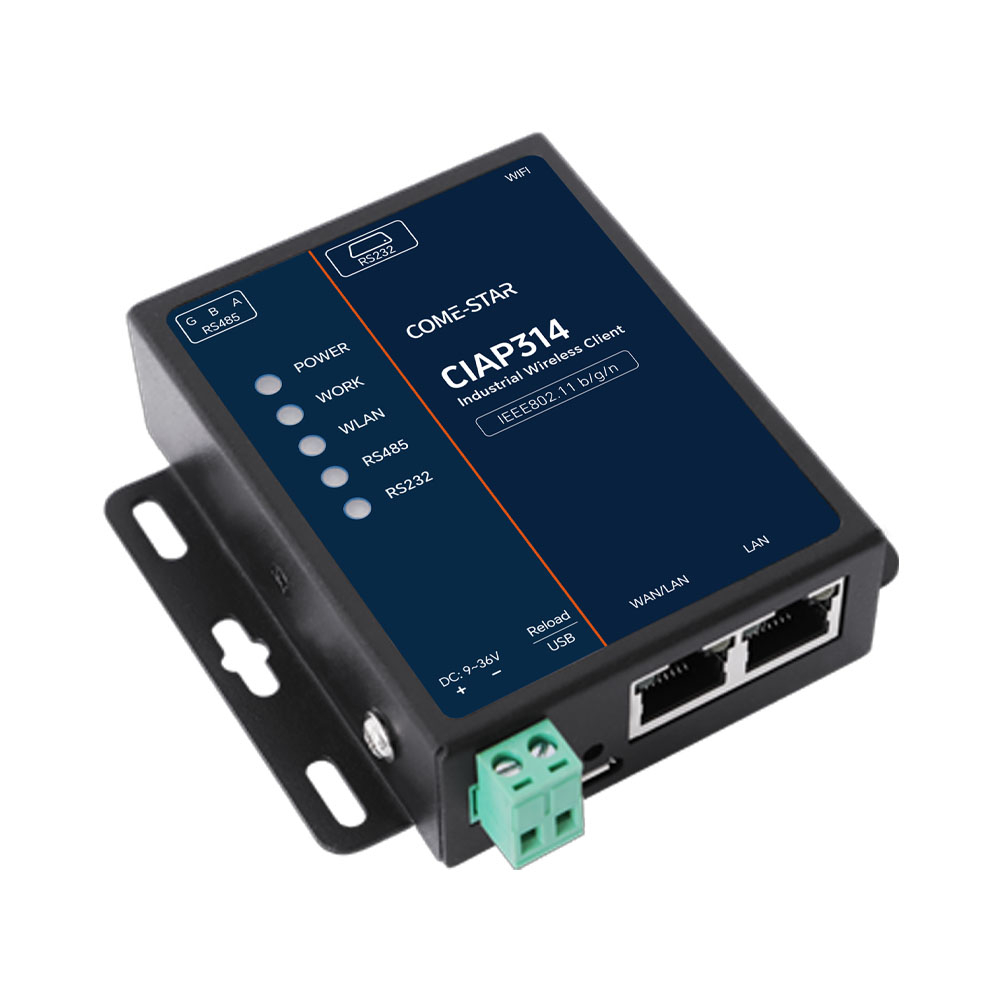

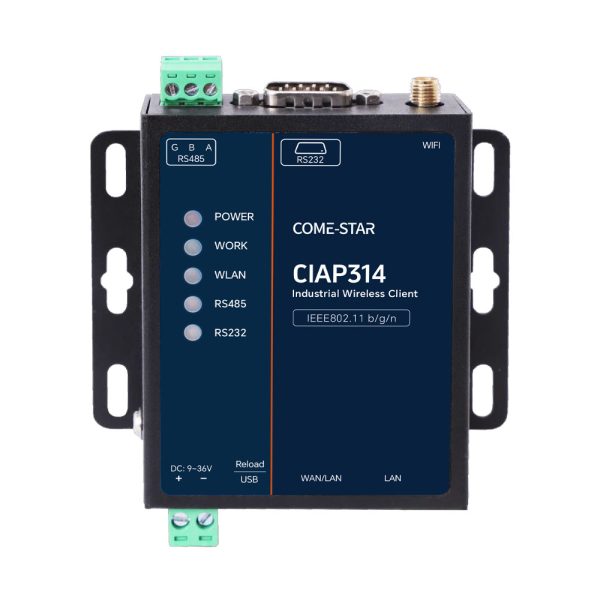

CIAP314-1A2-2D

CIAP314-1A2-2D provides serial port to WIFI, serial port to Ethernet, Ethernet to WIFI functions, and can convert serial port (RS232/485) into TCP/IP network interface, so that serial port devices can immediately have TCP/IP network interface function and connect to the network for data communication, greatly extending the communication distance of serial port devices.

CIAP314-1A2-2D supports WIFI protocol 802.11b/g/n, supports SSL data transmission encryption, has the characteristics of high speed, wide connection, low latency and high stability, and can carry 24 WIFI clients in AP hotspot mode. It has rich hardware interfaces: integrated WIFI802.11b/g/n, 1*RS232, 1*RS485, Ethernet port 1WAN/LAN, supports AP/AP+STA/STA/bridge/route mode, and can provide stable and reliable networking solutions for different scenarios and industries.

This product adopts industrial-grade standards, wide temperature and voltage, strong hardware protection, and has undergone multiple harsh environment tests. It has the characteristics of pressure resistance, drop resistance, and interference resistance. It has 1*RS232/1*RS485 serial port, supports MODBUS, MQTT, TCP, UDP, HTTP and other transmission protocols. It has built-in software and hardware dual watchdog, fault self-recovery and other mechanisms.It can adapt to different industry scenarios and still run stably and reliably in harsh and harsh environments.

The product is widely used in scenarios that require large amounts of WIFI data and low latency, such as smart parks, smart warehousing, smart medical care, smart factories, video surveillance, unmanned parking lots, industrial automation, smart transportation, smart cities, etc.

Note: SSL and MQTT functions are only supported in firmware V8.03T.14 and above.

Características del producto

• Support AP/AP+STA/STA/routing/bridge mode arbitrary networking
• Support SSL encryption, certificate authentication, and secure data transmission
• Support fast networking protocol , convenient for network configuration
• Support RS232/RS485, serial port data collection is easier
• Compatible with mainstream industrial protocols: TCP/UDP/MODBUS/HTTP/MQTT, etc.
• Support registration MAC, user-defined registration package
• Support custom heartbeat packets, socket distribution protocols, and MODBUS polling functions
• Support Websocket function to realize real-time interaction between serial port and web page
• Support a complete anti-dropout mechanism to ensure data transmission stability
• Support remote upgrade, timeout restart and scheduled restart functions
• Support serial port free framing and automatic framing, with higher forwarding efficiency
• Support four parameter configuration methods: web page, setting software, serial port AT command, network AT command
• Long communication distance: 280 meters for two serial port servers to transmit to each other
